THE ULTIMATE Guide to Home EV Charging in 2024

 Home EV Charging

Electric vehicles (EVs) are becoming increasingly popular as people seek more sustainable transportation options. As the demand for EVs grows, so does the need for convenient and efficient home EV charging solutions. In this guide, we will explore everything you need to know about home EV charging, from the different types of chargers to installation considerations and cost-saving tips.

I.Home EV Charging Benefits

With the surge in available electric vehicles (EVs), homeowners ponder purchasing an EV and installing a home charger. Beyond convenience, there are compelling reasons to consider home charging. Picture skipping rush-hour gas station stops—unlimited power available at home, optimizing your time wherever you park. For many EV drivers, this is becoming a reality.

  • Convenience: Charging at home provides unparalleled convenience, allowing owners to plug in their vehicles overnight and wake up to a fully charged battery each morning without relying on public charging stations.
  • Cost Savings: Home electricity rates are often lower than public charging station rates, resulting in potential cost savings over time. Additionally, some utility companies offer special tariffs for EV charging, further reducing costs.
  • Time Efficiency: Home charging saves time by eliminating the need to drive to and wait at public charging stations. This time-saving aspect aligns well with busy lifestyles.
  •  Reliability: Having a dedicated home charging station ensures consistent and reliable access to a charging point. It reduces uncertainties about station availability or compatibility.
  • Customization and Control: Home chargers enable users to schedule charging times, optimize energy usage, and potentially benefit from off-peak electricity rates. Users can also customize charging speeds based on their needs.
  • Range Confidence:Home charging helps alleviate range anxiety as owners can regularly top up their EV's battery at home, ensuring they start their journeys with a full charge.
  • Encouraging EV Adoption:Access to home charging solutions plays a crucial role in encouraging more people to switch to electric vehicles. It addresses concerns about charging infrastructure and promotes confidence in EV ownership.

II.Types of Home EV Chargers

Home EV chargers come in various types to suit different needs:

  • Level 1 chargers: Level 1 chargers use a standard 120-volt outlet and typically come with your EV purchase. While they are the slowest charging option, they are suitable for overnight charging and can add around 4-5 miles of range per hour.

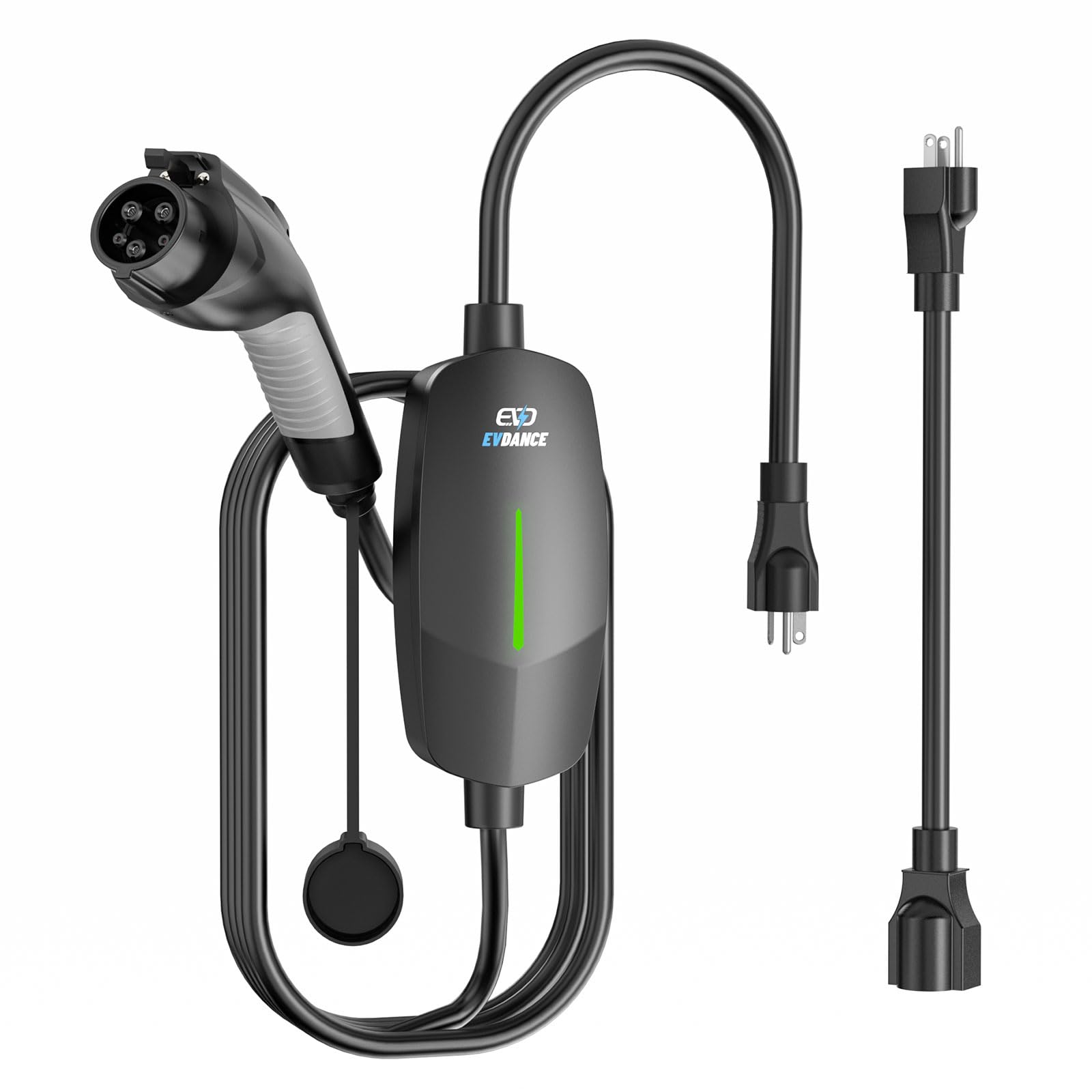

  • Level 2 chargers: Level 2 chargers require a 240-volt outlet, similar to those used for electric dryers or ovens. They offer faster charging speeds, adding around 25-30 miles of range per hour. Level 2 chargers are recommended for those who frequently drive longer distances or have multiple EVs in their household.Level 2 EV Charger 40Amp
  • Smart Chargers: Incorporate advanced features like Wi-Fi connectivity, scheduling, and remote monitoring, allowing users to manage charging sessions efficiently.
  • Fast Chargers: Also known as Level 3 or DC fast chargers, they offer rapid charging, suited for longer trips. They require specialized equipment and are mostly found in public charging stations.
  • Portable Chargers: Compact and versatile, these chargers can be carried and used with various outlets, providing charging flexibility on-the-go.

 Selecting the right charger depends on factors like charging speed needed, installation feasibility, and the convenience features desired for your EV charging routine.

III. Understanding Charging Connectors and Cables

Understanding charging connectors and cables is crucial for effective EV charging:

  • J1772 Connector: Common for Level 1 and Level 2 charging in North America, used by most electric vehicles, except for some Teslas.
  • CCS (Combo Charging System): Integrates AC and DC charging in one port, prevalent among European and U.S. EVs, offering faster charging.
  • CHAdeMO Connector: Primarily used by some Japanese and Asian EVs for DC fast charging, less common in newer models.
  • Tesla Connector (Tesla-specific): Used exclusively by Tesla vehicles, available in proprietary Tesla charging stations but adaptable to other connectors with adapters.
  • Type 2 Connector: Widely used in Europe, known for its versatility, supporting both slow and fast charging for various EV models.
  • NEMA 5-15: Common household outlet delivering standard 120 volts, utilized for Level 1 charging with EVs.
  • NEMA 6-20: Offers 240 volts, faster charging compared to NEMA 5-15, suitable for Level 2 charging.
  • NEMA 14-50: Employs a 240-volt outlet, commonly used for high-power appliances and EV charging, capable of faster charging rates.



Understanding NEMA standards helps EV owners select the appropriate outlet and adapters for their home charging needs. Compatibility with NEMA outlets ensures safe and efficient charging at home or when using public charging stations.
Adapting to different connectors may require additional cables or adapters, ensuring compatibility between your EV and charging stations with varying connectors. Familiarizing yourself with these connectors ensures you can efficiently charge your EV across different networks and stations.

IV.Setting Up Your Home Charging Station

  • Assess Electrical Capacity: Determine your home's electrical capacity and ensure it can support the charging station's requirements. Consult an electrician if needed to upgrade your electrical panel or wiring.

  • Select the Charging Equipment: Choose between Level 1 or Level 2 chargers based on your vehicle's needs and your daily mileage. Consider smart charging features for added convenience.

  • Choose Location: Select an optimal location near your parking space with easy access to power outlets. Ensure it's weather-resistant and complies with safety standards.

  • Install Charging Equipment: Follow manufacturer instructions or hire a certified electrician to install the charging station correctly, adhering to local electrical codes.

  • Ensure Safety Measures: Install ground fault circuit interrupters (GFCI) and use appropriate cables and connectors to ensure safe charging practices.

  • Consider Smart Features: Explore smart charging options that allow scheduling, remote monitoring, and managing charging sessions via smartphone apps.

  • Test and Maintenance: Once installed, test the station to ensure it's functioning correctly. Perform periodic maintenance checks to ensure
    optimal performance.

By following these steps, you can set up a reliable and efficient home charging station that meets your EV's needs while prioritizing safety and functionality.

V.Optimizing Charging Efficiency

  • Smart Charging Schedules: Leverage smart charging features to schedule charging during off-peak hours when electricity rates are lower, reducing overall charging costs.

  • Maximize Level 2 Charging: Utilize Level 2 chargers with higher power outputs for faster charging speeds, ideal for overnight or longer parking durations.

  • Battery Management: Avoid letting your EV's battery drain completely. Charge regularly to maintain a balanced battery level for optimal performance and longevity.

  • Utilize Preconditioning: Use your EV's pre-conditioning feature while plugged in to set the desired cabin temperature before driving, minimizing energy use from the battery while on the road.

  • Monitor Charging Habits: Track your charging patterns and adjust settings or schedules based on your usage to optimize efficiency and minimize energy waste.

  • Explore Renewable Energy: Consider installing solar panels or sourcing renewable energy sources to power your home charger, reducing your carbon footprint.

  • Efficient Driving Practices: Adopt efficient driving habits such as regenerative braking, maintaining steady speeds, and minimizing unnecessary accessory use to extend your EV's range between charges.

By implementing these strategies, you can enhance the efficiency of your EV charging routine, making it more cost-effective and environmentally friendly while maximizing the performance of your electric vehicle.

VI. Cost Analysis and Incentives

Analyzing costs and exploring available incentives for EV charging can be beneficial:

  • Charging Cost Calculation: Calculate the cost of charging your EV based on your electricity rates and the vehicle's charging efficiency. This helps estimate the expense compared to traditional fueling methods.

  • Government Incentives: Research federal, state, or local incentives for EV owners, such as tax credits, rebates, or grants aimed at reducing the initial purchase cost or installation of home chargers.

  • Utility Programs: Check for utility company programs offering special EV charging rates or incentives, encouraging off-peak charging or providing discounts for EV owners.

  • Environmental Benefits: Consider the long-term savings associated with reduced emissions, maintenance costs, and potential access to carpool lanes or toll discounts for EVs.

  • Total Ownership Cost: Evaluate the overall cost of owning an EV, factoring in fuel savings, incentives, and maintenance expenses compared to traditional internal combustion engine vehicles.

Analyzing these aspects provides a comprehensive view of the financial benefits and incentives available for EV owners, assisting in making informed decisions regarding EV purchases and charging infrastructure investments.

VII. Future Trends and Innovations in Home EV Charging

Future trends and innovations in home EV charging are poised to revolutionize the charging experience:

  1. Wireless Charging: Advancements in wireless charging technology may eliminate the need for physical cables, allowing EVs to charge simply by parking over a charging pad or within a designated area.

  2. Higher Charging Capacities: Evolving battery technologies and higher-powered chargers will enable faster charging rates, significantly reducing the time required to replenish an EV's battery.

  3. Bidirectional Charging: Bi-directional chargers will enable EVs to not only charge from the grid but also discharge electricity back to the grid or power homes during outages, enhancing grid resilience.

  4. Smart Grid Integration: Integration with smart grids will enable dynamic charging, optimizing charging times based on grid demand, and providing users with cost-effective charging options.

  5. Energy Storage Solutions: Coupling home EV chargers with energy storage solutions like home batteries will optimize energy usage and provide backup power during peak demand or outages.

  6. Integration of Renewable Energy: Integrating home charging stations with solar panels or other renewable energy sources will promote cleaner and more sustainable charging practices.

  7. Enhanced User Experience: Innovations in user interfaces, mobile apps, and AI-driven functionalities will provide users with more intuitive and personalized charging experiences.

These future trends promise more efficient, convenient, and sustainable home EV charging solutions, transforming the way EV owners charge their vehicles and interact with the broader energy ecosystem.

Conclusion

Home EV charging offers convenience, cost savings, and encourages EV adoption. Assess electrical capacity, choose the right charger, install it properly, and prioritize safety. Optimize efficiency through smart charging, battery management, and renewable energy use. Consider costs, incentives, and future advancements to stay informed.
