The Ultimate Guide on EV Charging in 2024

Ultimate Guide on EV Charging

Electric vehicles (EVs) have seen a rapid rise in popularity worldwide, including in the United States. Sales data shows a substantial increase in EV sales in the U.S., growing from a mere 0.2 percent of total vehicle sales in 2011 to 4.6 percent in 2021 (U.S. BUREAU OF LABOR STATISTICS). This signifies a growing acceptance and adoption of electric vehicles in the American market.

Projections for EV adoption in the coming years vary, but most forecasts anticipate a continued increase in market share. According to S&P Global Mobility , electric vehicle sales in the U.S. are expected to encompass 40% of total passenger vehicle sales by 2030. More optimistic outlooks even predict that EV sales could surpass 50% by the same year.

The surge in popularity of electric vehicles can be attributed to several factors.

  • Firstly, their environmentally friendly nature sets them apart from conventional internal combustion engine vehicles. Electric vehicles produce no tailpipe emissions, resulting in reduced air pollution and greenhouse gas emissions. This contributes to improved air quality and aids in mitigating climate change.
  • Electric vehicles also offer the advantage of reduced energy dependency. By utilizing various energy sources, including renewable options such as solar and wind power, EVs contribute to energy diversification and support sustainable development. This reduces reliance on finite fossil fuels and fosters a more sustainable energy landscape.
  • Government support has played a pivotal role in promoting the adoption of electric vehicles. Many countries and regions, including the U.S., provide subsidies, tax breaks, and other incentives to encourage consumers to choose EVs. These policies have successfully stimulated consumer demand and facilitated the growth of the electric vehicle market.
  • Technological advancements, notably in battery technology, have considerably enhanced the availability and competitiveness of electric vehicles. These advancements have led to increased battery range, shorter charging times, and declining battery costs. Consequently, more consumers are attracted to electric vehicles as a viable transportation option.
  • the construction of charging infrastructure has expanded alongside the growing popularity of electric vehicles. Charging stations are being strategically built in cities and along highways, addressing consumer concerns about convenient and accessible charging options. This infrastructure development ensures that EV owners can confidently rely on a robust charging network.

1.Understanding EV Charging

  • Home Charging:Home charging refers to charging an electric vehicle at the owner's residence. This is typically done by plugging the vehicle into a standard electrical outlet or through a dedicated home charging station. Home charging offers convenience and flexibility as EV owners can easily plug in their vehicles overnight or whenever they are parked at home for an extended period. It is often the most cost-effective option for charging an EV, as home electricity rates tend to be lower compared to public charging stations.

  • Workplace Charging:Workplace charging involves installing charging stations at office or workplace parking areas to allow EV owners to charge their vehicles while at work. This type of charging offers convenience for employees who can charge their vehicles during the workday, providing an additional charging option beyond home charging. Workplace charging is beneficial in areas where commuting distances are longer, as it allows EV owners to "top up" their battery during the day, extending their driving range.

  • Public Charging:Public charging stations are located in various public areas such as shopping centers, parking lots, and roadside locations. These charging stations are available for use by any EV owner and provide the convenience of charging on-the-go. Public charging helps address range anxiety as it offers EV owners the ability to charge when they are away from home or work and need an immediate charging solution. Public charging stations may offer different charging speeds, such as Level 2 (240-volt) or DC fast charging, which can provide a significant charge in a short amount of time.

2.Charging at Home

Charging an electric vehicle (EV) at home offers several benefits for EV owners:

  • Convenience: Home charging provides the utmost convenience as it allows EV owners to charge their vehicles at their own residence. Simply plugging in the EV overnight or whenever it is parked at home ensures that the vehicle starts the day with a full or near-full battery, maximizing its range.
  • Cost-effectiveness: Home charging is generally the most cost-effective option for EV owners. Home electricity rates are often lower compared to the cost of charging at public charging stations. Additionally, many utilities offer special EV charging rates or time-of-use rates, allowing EV owners to take advantage of reduced electricity prices during off-peak hours, further reducing charging expenses.
  • Flexibility: With home charging, EV owners have full control over their charging schedule. They can plug in their vehicle at any time, providing flexibility to take advantage of cheaper electricity rates or to ensure the vehicle is fully charged for planned trips or events.


Installing Home Charging:

To install home charging for an EV, there are a few key considerations:

  • Dedicated Charging Equipment: It is recommended to install a dedicated home charging station, also known as an Electric Vehicle Supply Equipment (EVSE). This provides optimal charging performance and ensures the safety of both the vehicle and the electrical system in the home.
  • Electrical System Capacity: Before installing a home charging station, it is important to assess the capacity of the electrical system in the home. Ensuring that the electrical panel has enough capacity to handle the additional load is essential. In some cases, an upgrade to the electrical system may be necessary.
  • Professional Installation: It is recommended to hire a licensed electrician experienced in EV charging station installations to ensure the proper installation of the home charging station. This ensures compliance with electrical codes and safety standards and guarantees the safe and efficient operation of the charging equipment.


Safety Considerations and Regulations:

When it comes to charging EVs at home, some safety considerations and regulations should be kept in mind:

  • Ground Fault Circuit Interrupter (GFCI): It is recommended to have Ground Fault Circuit Interrupter protection installed for the EV charging circuit. This provides an added layer of safety by quickly shutting off the power supply if there is a fault or electrical imbalance.
  • Adhering to Local Codes: Local electrical codes may have specific requirements for EV charging installations. It is important to consult with a licensed electrician to ensure compliance with all relevant local regulations and safety standards.
  • Manufacturer Guidelines: It is crucial to follow the manufacturer's guidelines and recommendations for the charging equipment, including proper maintenance and usage instructions. This includes using compatible chargers and cables and ensuring the charging station is properly grounded.

3.Public Charging Infrastructure

Public charging infrastructure offers EV owners the convenience of charging on-the-go. There are different types of public charging stations that cater to various charging needs:

  • Level 2 Chargers: Level 2 charging stations operate at 240 volts and typically deliver power between 7 to 22 kilowatts (kW). They provide a moderate charging rate and are commonly found in public parking lots, shopping centers, and other public areas. Level 2 chargers are suitable for charging during longer stops, such as while running errands or shopping.
  • DC Fast Chargers: DC fast chargers, also known as Level 3 chargers, offer much faster charging speeds compared to Level 2 chargers. They utilize direct current (DC) power to charge the vehicle's battery, bypassing the vehicle's onboard charger. DC fast chargers are capable of delivering power levels ranging from 50 kW to 350 kW, significantly reducing charging time. These chargers are typically located along highways, rest areas, and high-traffic areas to facilitate quick charging during long journeys.
  • Superchargers: Superchargers are high-power DC fast chargers specifically designed and built by Tesla for their electric vehicles. They have power levels ranging from 120 kW to 250 kW, allowing Tesla vehicles to charge at very high speeds. Superchargers are usually strategically placed along popular travel routes, providing fast and convenient charging for long-distance trips.

Public charging infrastructure Types
Charging Availability: Charging availability at public stations can vary depending on the location and demand. Popular charging stations may experience higher usage and occasional wait times, especially during peak hours or in congested areas. However, with the increasing deployment of public charging infrastructure, availability continues to improve, reducing the likelihood of encountering charging station congestion.

Payment Methods: Public charging stations offer various payment methods, including credit card payments, mobile apps, or charging network membership accounts. Some charging networks require an access card or RFID tag for authentication and billing purposes. It is essential to research and understand the payment options and requirements for the charging stations in your area to ensure a seamless charging experience.

Charging Station Locator Tools: Charging station locator tools and smartphone apps can help EV owners easily find nearby charging stations. These tools provide real-time information on the availability of charging stations, applicable rates, and other useful details such as power levels and connector types supported. EV manufacturers, charging networks, and independent organizations often provide their own charging station locator tools for convenience.

4.Types of Connectors and Charging Standards

Various connector types are used for EV charging, each associated with different charging standards and compatibility:

J1772: The J1772 connector, also known as the SAE J1772 connector, is the most common charging connector for Level 1 and Level 2 charging in North America. It features a standardized plug design that is compatible with most electric vehicles.

Mennekes:The Type 2 connector is a standard charging plug used in Europe for electric vehicles. It supports single-phase or three-phase current and can deliver up to 43 kW of power. It is not as widely used in other regions such as North America.

NACS: The North American Charging Standard (NACS) is a proprietary connector used by General Motors for their electric vehicles, such as the Chevrolet Volt. It is similar in design to the SAE J1772 connector but has a slightly different shape. NACS connectors are compatible with charging stations specifically designed for GM electric vehicles.


CCS1: The Combined Charging System (CCS) connector is used for DC fast charging in Europe and North America. It combines the J1772 or Type 2 AC connector with two additional DC pins for high-power DC charging. CCS connectors are capable of delivering high charging speeds and are compatible with a wide range of electric vehicles.

CCS2:CCS2 is an extension of the CCS charging standard that allows for both AC and DC charging using a single connector. It is primarily used for DC fast charging in Europe and other regions around the world and delivers higher charging speeds compared to previous versions of CCS. It is becoming the standard for DC fast charging and is backward-compatible with older CCS1 connectors through the use of an adapter.



CHAdeMO: CHAdeMO is a DC fast charging connector primarily used by Japanese automakers. It features a unique plug design and is capable of high-power DC charging. CHAdeMO charging stations are primarily found in Japan and are compatible with a limited number of EV models.
Types of Connectors and Charging Standards

5.Charging Speed and Time

Charging speed refers to the rate at which an electric vehicle (EV) can charge its battery. Different charging levels and technologies result in varying speeds. Here are the common charging speeds and associated timeframes:



  • Level 1 Charging: Level 1 charging uses a standard household outlet (120 volts AC) and typically delivers power at a rate of 1.4 to 2.3 kilowatts (kW). It is the slowest charging option but is the most accessible since it can be done with a standard electrical outlet. Level 1 charging can add around 3 to 5 miles of range per hour and is suitable for overnight or long-duration charging.
  • Level 2 Charging: Level 2 charging requires a dedicated charging station and uses 240 volts AC power. These stations typically provide power between 3.3 to 19.2 kilowatts (kW), significantly faster than Level 1 charging. Level 2 charging can add around 15 to 40 miles of range per hour, reducing charging time compared to Level 1.
  • DC Fast Charging: DC fast charging, also known as Level 3 charging, is the fastest charging option available. It uses direct current (DC) and can deliver power from 50 kilowatts (kW) to over 350 kilowatts (kW), depending on the charging station. DC fast charging can add around 100 miles of range in 20 to 30 minutes, making it ideal for long-distance travel or quick top-ups.

EV Station Charging Level
Several factors can influence the charging speed of an EV:

  • Charging Station Capabilities: The maximum power output of the charging station determines the charging speed. Different charging stations have different power levels, so it's important to check the specifications of the charging station you are using. Upgrading to a charging station with a higher power output can significantly decrease charging time.
  • EV Battery Capacity: The size and capacity of the EV battery can affect the charging speed. Charging speeds may slow down as the battery approaches its maximum capacity, as most chargers reduce the rate to protect the battery's health. It's worth noting that EVs with larger battery capacities generally take longer to charge.
  • Temperature: Extreme temperatures, both hot and cold, can affect charging speed. Charging an EV in extremely hot temperatures may result in slower charging due to thermal management requirements. On the other hand, charging in very cold temperatures can cause the battery to be less efficient, leading to slower charging speeds.


Tips for maximizing charging speed and minimizing charging time:

  • Choose the Right Charging Level: When time is a factor, it's best to use a higher charging level, such as Level 2 or DC fast charging, whenever possible. Level 1 charging is more suitable for long-duration charging when time is not a constraint.
  • Plan Charging Stops: For long-distance travel, plan your charging stops strategically to use fast-charging stations along the way. This minimizes time spent charging and allows for more continuous travel.
  • Charge during Off-Peak Hours: Electricity rates may vary depending on the time of day. Charging during off-peak hours when electricity demand is lower can potentially result in lower charging costs and faster charging speeds.
  • Precondition the Battery: Preconditioning the battery by preheating or precooling your EV while plugged in can optimize the battery's charging efficiency. This allows the battery to reach its ideal temperature before charging, enhancing charging speeds.
  • Monitor Charging Station Availability: Utilize apps or websites that provide real-time information on available charging stations, their types, and operational status. This helps in avoiding unnecessary waiting times or delays.

6.Common EV NEMA Plug Types

Electric vehicles (EVs) in North America may use NEMA Plug types for charging that are different from those used for household appliances.

  • NEMA 5-15: This is the standard household plug and receptacle used for 15 amperes at 125 volts. It is commonly found in residential buildings and can be used for general household appliances.
  • NEMA 6-20: This plug and receptacle are rated for 20 amperes at 240 volts. It is commonly used for larger appliances like air conditioners and heavy-duty equipment.
  • NEMA 14-50: This plug and receptacle are commonly used for electric vehicle (EV) charging stations and RVs. It is rated for 50 amperes at 125/250 volts and has a unique configuration with four pins.
NEMA Plug Type


These are just a few examples of the common NEMA plug types used in North America. The NEMA standard includes various other plug types and configurations to cater to different power requirements and applications.

7.Cost of EV Charging

The cost of EV charging is influenced by several factors. Here are some key factors to consider:

  • Electricity Rates: The cost of electricity is a significant factor in the overall cost of EV charging. Electricity rates can vary depending on the location, time of use, and the utility provider. Some utilities offer special rates for EV charging, such as off-peak or time-of-use rates, which can be cheaper than standard rates.
  • Charging Speed: The charging speed or power level you choose can impact the cost. Charging at a higher power level will charge the vehicle faster but may be more expensive. Slower charging options, such as Level 1 charging using a standard household outlet, may be more cost-effective.
  • Charging Infrastructure: The cost of installing and maintaining charging infrastructure can add to the overall cost. This includes the cost of purchasing and installing charging stations, as well as any additional electrical upgrades that may be required.
  • Network and Subscription Fees: Some charging networks or providers may require a membership or subscription fee to access their charging stations. These fees can vary and should be considered when estimating the cost of EV charging.


Estimating the cost of EV charging can be done by following these steps:

  • Determine the electricity rate: Contact your utility provider to find out the cost of electricity per kilowatt-hour (kWh) for your specific location. Take note of any applicable time-of-use rates or incentives for EV charging.
  • Calculate the charging time: Determine how long it takes to charge your EV from your chosen charging level. For example, if you charge your vehicle from 0% to 100% in 4 hours and the charging station delivers 7kW of power, the charging time would be 4 hours multiplied by 7kW, resulting in 28 kWh.
  • Multiply charging time by electricity rate: Multiply the charging time (in kWh) by the electricity rate (per kWh) to calculate the cost of charging. For example, if the electricity rate is $0.15 per kWh and the charging time is 28 kWh, the cost would be $0.15 multiplied by 28, resulting in $4.20.

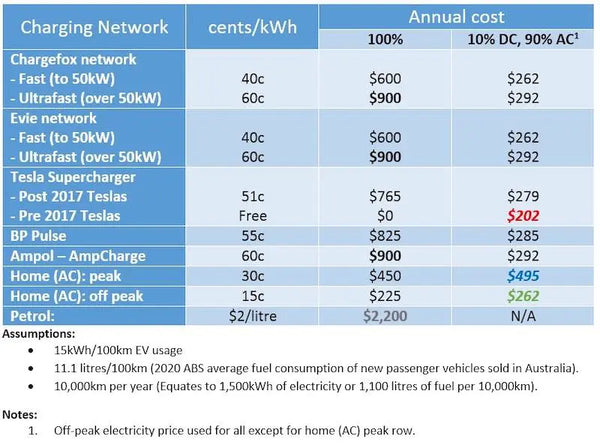

Cost of EV Charging
Potential cost savings of EV charging compared to traditional internal combustion engine (ICE) vehicles include:

  • Lower Fuel Costs: Charging an EV with electricity is generally cheaper than refueling a gasoline or diesel-powered vehicle. This can lead to significant savings in fuel expenses over time.
  • Reduced Maintenance Costs: EVs have fewer moving parts than ICE vehicles, which leads to lower maintenance costs. There is no need for oil changes, transmission repairs, or other regular maintenance associated with internal combustion engines.
  • Incentives and Rebates: Many governments, utility companies, and organizations offer incentives and rebates for purchasing and charging EVs. These incentives can further reduce the cost of owning and operating an electric vehicle.

 8.Safety Consider

Safety considerations when charging an electric vehicle (EV) are crucial to ensure a safe and reliable charging experience. Here are some key areas of focus and tips for promoting safety during EV charging:

  • Electrical Safety and Grounding:


a. Use Certified Charging Equipment: Always use charging equipment and accessories that are certified by recognized safety organizations, such as UL (Underwriters Laboratories) or CSA (Canadian Standards Association). Certified equipment ensures adherence to safety standards and regulations.

b. Proper Installation: When installing a charging station, it is essential to hire a qualified electrician who follows local electrical codes and guidelines. Proper installation includes appropriate wiring, circuit breakers, and protection measures to ensure safe and reliable charging.

c. Grounding: It's crucial to ensure that the charging station is properly grounded to prevent electric shock hazards. Adequate grounding minimizes the risk of electrical faults and ensures safe operation.

  • Thermal Management:


a. Temperature Considerations: EV batteries can generate heat during charging, particularly during high-power fast charging. It's important to ensure proper ventilation or cooling systems for the charging equipment and battery to prevent overheating and prolong battery life.

b. Avoid Extreme Temperatures: Extreme temperatures can impact charging efficiency and overall battery performance. Avoid charging in extremely hot or cold environments when possible, as it may affect battery health and safety.

Certified Charging Equipment and Following Manufacturer Guidelines:

a. Use Manufacturer-Recommended Chargers: It is advised to use charging equipment recommended by the vehicle manufacturer. Different EV models may have specific charging requirements, and using compatible chargers ensures optimal performance and safety.

b. Follow Manufacturer Guidelines: Follow the manufacturer's guidelines for charging procedures, including charging rates and precautions. Avoid using unapproved adapters, extension cords, or power outlets that may compromise safety.

  • Safe Charging Practices:


a. Inspect Charging Cables: Regularly inspect charging cables for any signs of wear, damage, or loose connections. If any issues are identified, replace or repair the cable immediately.

b. Avoid Overloading Circuits: Be mindful of the electrical load on the charging circuit and avoid using multiple high-power appliances simultaneously on the same circuit to prevent overloading.

c. Don't Use Damaged Outlets: Ensure that the power outlets used for charging are in good condition, without any visible damage or loose connections. Using damaged outlets can increase the risk of electrical issues or accidents.

  • Chargers in Public:


a. Use Established Charging Networks: When using public charging stations, it is generally safer to use established and reputable charging networks. These networks usually have better maintenance practices, ensure safety compliance, and provide support in case of emergencies.

b. Be Aware of Surroundings: When charging in public, be aware of your surroundings and take necessary precautions to protect personal belongings and maintain personal safety.

Remember, safety is paramount when charging an EV. It is essential to follow proper procedures, use certified equipment, and exercise caution to prevent accidents or any electrical hazards.

9.Future of EV Charging

  • As electric vehicles (EVs) become more prevalent, the EV charging industry is expected to see significant growth and evolution. Here are some emerging trends and advancements to watch out for in the coming years:
  • Renewable Energy Integration: As the world shifts towards decarbonization and renewable energy, EV charging is also expected to tap into these clean energy sources. Solar-powered charging stations and EV fleets powered by renewable energy are some of the emerging trends aimed at reducing carbon footprints associated with EV charging.
  • Smart Grid Technologies: Smart grid technologies enable real-time monitoring, control, and management of energy consumption and supply. These technologies would help mitigate potential power-grid disruptions from EVs' high-power demands and reduce energy costs by using off-peak charging. Additionally, smart grid technologies could enable EV charging stations to communicate with utilities and other charging stations, streamlining the charging process.
  • Vehicle-to-Grid (V2G) Capabilities: V2G technology enables EVs to discharge energy back into the electric grid, providing a valuable grid-balancing tool. This technology could also allow EV owners to sell unused energy back to the grid, providing an additional source of revenue.
  • Wireless Charging: Wireless charging eliminates the need for cables and connectors, enabling charging through an electromagnetic field. These charging systems could be embedded in roadways or parking spaces, eliminating the need for physical charging stations.
  • High-Speed Charging: Charging technology is rapidly improving, and high-power fast charging is becoming a sought-after feature for EV owners. The industry is expected to standardize high-speed charging protocols to enable universally compatible charging stations. Additionally, companies are developing innovative battery technologies that could significantly reduce charging times.
  • Intelligent Charging: Intelligent charging requires charging stations to be equipped with sensors and data analytics technologies that provide insights into energy usage data and consumer charging behaviors. This information could be used to optimize charging infrastructure design, reduce energy costs, and improve customer experiences.

Conclusions

Electric vehicles (EVs) are surging in popularity globally, with projections indicating a potential market share of 40-50% by 2030 in the US. This growth is propelled by environmental benefits, government support, technological advancements, and expanding charging infrastructure.

Charging options include home, workplace, and public charging, each offering convenience and flexibility. Home charging, cost-effective and convenient, requires dedicated equipment and adherence to safety guidelines.

The future of EV charging embraces renewable energy, smart grids, high-speed charging, and wireless technology. EVDANCE, a tech company specializing in EV-related products, could significantly contribute to this evolving landscape with innovative solutions, supporting the transition to cleaner energy vehicles.
